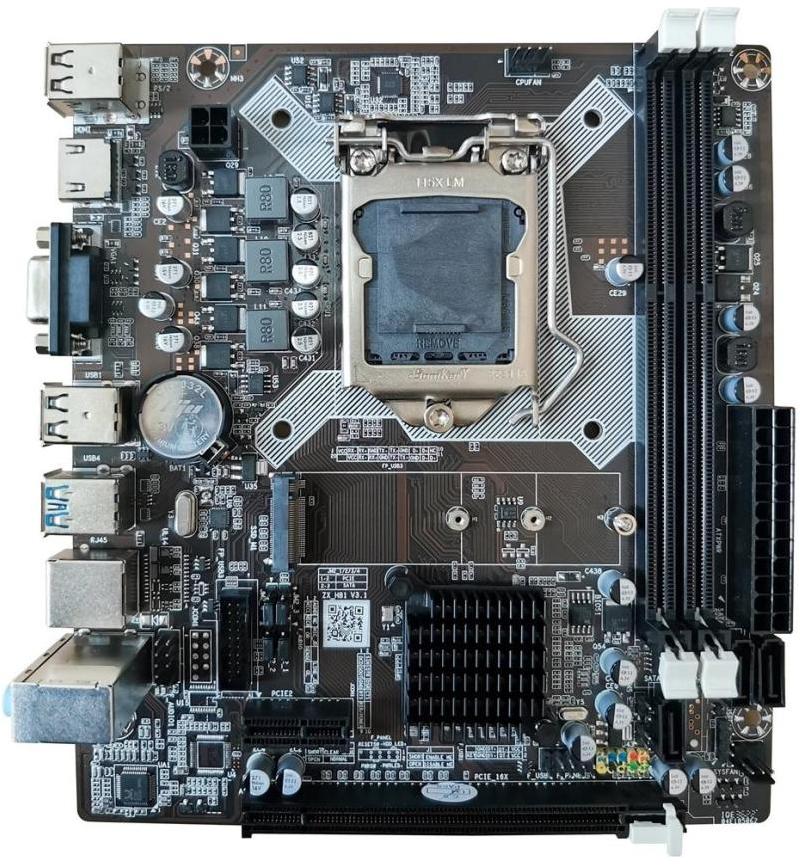

H81 CHIPSET 1150 – M-ATX – 4TH GENE – H81M MOTHERBOARD (NEW)

Description

M-ATX – AK – H81M EL

CPU Support: Support Intel Core i7/i5/i3/Pentium/ Celeron Processors in the LGA1150 Package

Support Intel 4th Generation Multi-Core Processors

Chipset : Intel H81 Chipset – 1150 socket

On-Board Graphics: Integrated Graphics Processor

Memory: Dual Channel DDR3 1066/1333/1600MHz, Supports Non-ECC, Un-Buffered Memory

DIMM: 2 x Memory Slots (Max. up to 8GB each)

LAN: Onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps (Optional)

Audio: Onboard Realtek 662 6-Channel HD Audio Codec Front Panel Audio-Out, Mic-In Jack

SATA: 3 x SATA, 1 x M.2 Supports NVME+NGFF

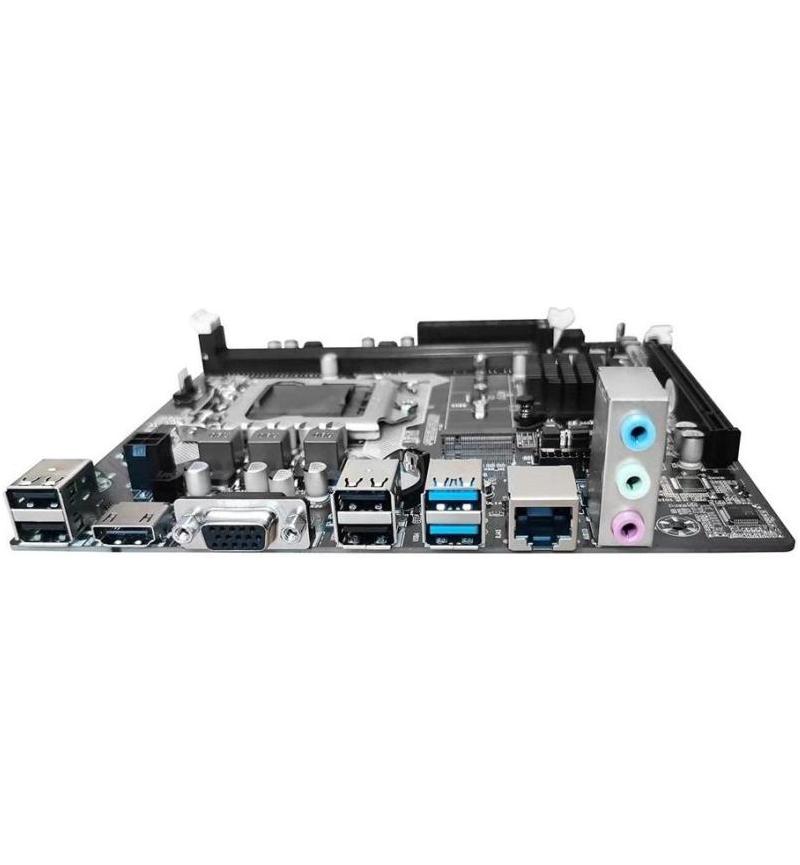

Back Panel I/O Ports: 1 x VGA Port 1 x HDMI Port

4 x USB 2.0 Port

2 x USB 3.0 Port

1 x LAN Jack

3 x Audio Jack (Line in / Line Out / Mic In)

ON-Board Pinheaders /Connectors: 1 x USB 2.0 Pinheader Supports Additional

2 USB 2.0 Ports

1 x Front Panel Audio Pinheader

Slots: 1 x PCI Express x16 Slot

BIOS: UEFI BIOS

Form Factor: Micro-ATX (19 x 17 cm)

Mounting: 6 Mounting Holes

Accessories:

1 x SATA Cable

1 x I/O Backboard

1 x User Manual

1 x Driver CD



12 MONTHS WARRANTY

(MP)
